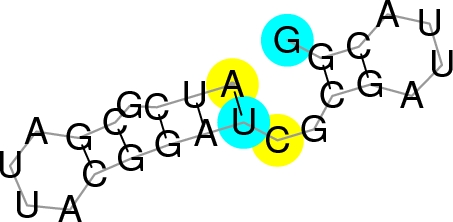

General features for molecule PDB_01138 (click to expand/contract all tables) Format: CT RNAML Bpseq Dot-parentheses FASTA Molecule ID [?]: PDB_01138 Molecule name [?]: MS2-RNA HAIRPIN (G-10) COMPLEX Source [?]: RCSB Protein Data Bank Source ID [?]: 2IZN Reference [?]: C.HELGSTRAND,E.GRAHN,T.MOSS,N.J.STONEHOUSE,K.TARS, P.G.STOCKLEY,L.LILJAS. INVESTIGATING THE STRUCTURAL BASIS OF PURINE SPECIFICITY IN THE STRUCTURES OF MS2 COAT PROTEIN RNA TRANSLATIONAL OPERATOR HAIRPINS.. NUCLEIC ACIDS RES. V. 30 2678 2002 ASTM NARHAD UK ISSN 0305-1048 Type [?]: Synthetic RNA [?]     PS figure     PDF figure Figure from original source Organism [?]: BACTERIOPHAGE MS2 Validated by NMR or X-Ray [?]: Yes Method for secondary structure determination [?]: X-RAY, RESOLUTION 2.56 ANGSTROMS; ran through RNAview Number of molecules [?]: 2 Length [?]: 26 Fragments used [?]: No Duplicated sequence [?]: No other molecule in the database has the same sequence Number of domains [?]: 2 Number of unpaired bases [?]: 12 Number of paired bases [?]: 14

Click on any header below for additional features.

Stem features Number of stems [?]: 3 Number of base pairs in stems [?]: 7 Maximum length of a stem [?]: 3 Average length of a stem [?]: 2.33 Minimum length of a stem [?]: 2 Maximum estimated free energy [?]: -2.4 Average estimated free energy [?]: -2.77 Minimum estimated free energy [?]: -3.5

Hairpin loop features Number of hairpin loops [?]: 2 Maximum number of free bases in hairpin loops [?]: 4 Average number of free bases in hairpin loops [?]: 4 Minimum number of free bases in hairpin loop [?]: 4

Bulge loop features Number of bulge loops [?]: 1 Maximum number of free bases in bulge loops [?]: 1 Average number of free bases in bulge loops [?]: 0.5 Minimum number of free bases in bulge loop [?]: 0

Internal loop features

Multi-loop features

Non-canonical base pairs features Total number of non-canonical base pairs [?]: 0

Pseudoknot features
