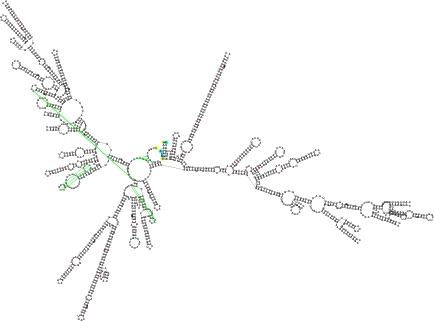

General features for molecule PDB_01015 (click to expand/contract all tables) Format: CT RNAML Bpseq Dot-parentheses FASTA Molecule ID [?]: PDB_01015 Molecule name [?]: A SNAPSHOT OF THE 30S RIBOSOMAL SUBUNIT CAPTURING MRNA VIA THE SHINE- DALGARNO INTERACTION Source [?]: RCSB Protein Data Bank Source ID [?]: 2E5L Reference [?]: T.KAMINISHI,D.N.WILSON,C.TAKEMOTO,J.M.HARMS, M.KAWAZOE,F.SCHLUENZEN,K.HANAWA-SUETSUGU, M.SHIROUZU,P.FUCINI,S.YOKOYAMA. A SNAPSHOT OF THE 30S RIBOSOMAL SUBUNIT CAPTURING MRNA VIA THE SHINE-DALGARNO INTERACTION. STRUCTURE V. 15 289 2007 ASTM STRUE6 UK ISSN 0969-2126 Type [?]: 16S Ribosomal RNA [?]     PS figure     PDF figure Figure from original source Organism [?]: THERMUS THERMOPHILUS Validated by NMR or X-Ray [?]: Yes Method for secondary structure determination [?]: X-RAY, RESOLUTION 3.30 ANGSTROMS; ran through RNAview Number of molecules [?]: 3 Length [?]: 1527 Fragments used [?]: No Duplicated sequence [?]: No other molecule in the database has the same sequence Number of domains [?]: 5 Number of unpaired bases [?]: 475 Number of paired bases [?]: 1052

Click on any header below for additional features.

Stem features Number of stems [?]: 82 Number of base pairs in stems [?]: 463 Maximum length of a stem [?]: 23 Average length of a stem [?]: 5.66 Minimum length of a stem [?]: 2 Maximum estimated free energy [?]: 0 Average estimated free energy [?]: -9.27 Minimum estimated free energy [?]: -39.2

Hairpin loop features Number of hairpin loops [?]: 29 Maximum number of free bases in hairpin loops [?]: 10 Average number of free bases in hairpin loops [?]: 4.07 Minimum number of free bases in hairpin loop [?]: 2 Total number of UUCG hairpin motifs per molecule [?]: 1

Bulge loop features Number of bulge loops [?]: 26 Maximum number of free bases in bulge loops [?]: 3 Average number of free bases in bulge loops [?]: 0.77 Minimum number of free bases in bulge loop [?]: 0

Internal loop features Number of internal loops [?]: 15 Maximum number of free bases in internal loops: 6 Average number of free bases in internal loops: 2.53 Minimum number of free bases in internal loop: 1 Maximum internal loop absolute asymmetry: 2 Average internal loop absolute asymmetry: 1.2 Minimum internal loop absolute asymmetry: 0 Maximum internal loop relative asymmetry: 3 Average internal loop relative asymmetry: 1.6 Minimum internal loop relative asymmetry: 1

Multi-loop features Number of multi-loops [?]: 11 Maximum number of free bases in multi-loops: 10 Average number of free bases in multi-loops: 2.86 Minimum number of free bases in multi-loop: 0 Maximum multi-loop absolute asymmetry: 7 Average multi-loop absolute asymmetry: 2.2 Minimum multi-loop absolute asymmetry: 0 Maximum multi-loop relative asymmetry: 7 Average multi-loop relative asymmetry: 1.16 Minimum multi-loop relative asymmetry: 0 Maximum number of branches in multi-loops: 4 Average number of branches in multi-loops: 3.18 Minimum number of branches in multi-loops: 3

Non-canonical base pairs features Total number of non-canonical base pairs [?]: 72 Total number of AA non-canonical base pairs: 8 Total number of AC non-canonical base pairs: 12 Total number of AG non-canonical base pairs: 41 Total number of CU non-canonical base pairs: 2 Total number of GG non-canonical base pairs: 4 Total number of UU non-canonical base pairs: 5

Pseudoknot features Number of pseudoknots [?]: 4 Number of bands: 8 Number of base pairs in bands: 63 Maximum band length: 32 Average band length: 7.88 Minimum band length: 2 Maximum number of bands per pseudoknot: 2 Average number of bands per pseudoknot: 2 Minimum number of bands per pseudoknot: 2 Maximum number of un-bands: 3 Average number of un-bands: 1.25 Minimum number of un-bands: 0 Maximum number of in-bands: 9 Average number of in-bands: 2.5 Minimum number of in-bands: 0 Maximum number of unpaired bases: 64 Average number of unpaired bases: 29 Minimum number of unpaired bases: 9 Several ways to remove minimum number of base pairs, per molecule: No Minimum number of base pairs to remove, per molecule: 11 Maximum number of base pairs to remove, per pseudoknot: 4 Average number of base pairs to remove, per pseudoknot: 2.75 Minimum number of base pairs to remove, per pseudoknot: 2 Minimum number of bands to remove, per molecule: 4 Maximum number of bands to remove, per pseudoknot: 1 Average number of bands to remove, per pseudoknot: 1 Minimum number of bands to remove, per pseudoknot: 1
