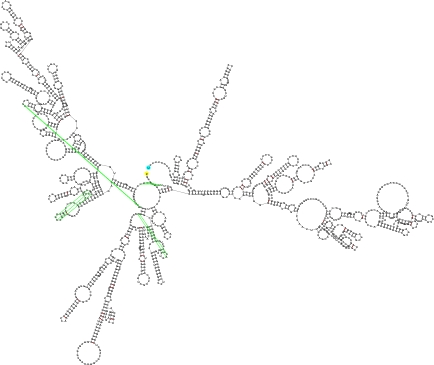

General features for molecule PDB_00589 (click to expand/contract all tables) Format: CT RNAML Bpseq Dot-parentheses FASTA Molecule ID [?]: PDB_00589 Molecule name [?]: STRUCTURE OF THE THERMUS THERMOPHILUS 30S RIBOSOMAL SUBUNIT IN THE PRESENCE OF CRYSTALLOGRAPHICALLY Source [?]: RCSB Protein Data Bank Source ID [?]: 1N36 Reference [?]: J.M.OGLE,F.V.MURPHY IV,M.J.TARRY,V.RAMAKRISHNAN. SELECTION OF TRNA BY THE RIBOSOME REQUIRES A TRANSITION FROM AN OPEN TO A CLOSED FORM. CELL (CAMBRIDGE,MASS.) V. 111 721 2002 ASTM CELLB5 US ISSN 0092-8674 Type [?]: 16S Ribosomal RNA [?]     PS figure     PDF figure Figure from original source Organism [?]: THERMUS THERMOPHILUS Validated by NMR or X-Ray [?]: Yes Method for secondary structure determination [?]: X-RAY, RESOLUTION 3.65 ANGSTROMS; ran through RNAview Number of molecules [?]: 1 Length [?]: 1513 Fragments used [?]: Yes Duplicated sequence [?]: Molecules in the database with the same sequence: PDB_00408, PDB_00436, PDB_00437, PDB_00438, PDB_00440, PDB_00478 Number of domains [?]: 4 Number of unpaired bases [?]: 705 Number of paired bases [?]: 808

Click on any header below for additional features.

Stem features Number of stems [?]: 91 Number of base pairs in stems [?]: 340 Maximum length of a stem [?]: 12 Average length of a stem [?]: 3.75 Minimum length of a stem [?]: 2 Maximum estimated free energy [?]: 0 Average estimated free energy [?]: -5.89 Minimum estimated free energy [?]: -18.1

Hairpin loop features Number of hairpin loops [?]: 27 Maximum number of free bases in hairpin loops [?]: 21 Average number of free bases in hairpin loops [?]: 6.26 Minimum number of free bases in hairpin loop [?]: 2

Bulge loop features Number of bulge loops [?]: 14 Maximum number of free bases in bulge loops [?]: 3 Average number of free bases in bulge loops [?]: 0.75 Minimum number of free bases in bulge loop [?]: 0

Internal loop features Number of internal loops [?]: 40 Maximum number of free bases in internal loops: 29 Average number of free bases in internal loops: 3.11 Minimum number of free bases in internal loop: 1 Maximum internal loop absolute asymmetry: 26 Average internal loop absolute asymmetry: 1.48 Minimum internal loop absolute asymmetry: 0 Maximum internal loop relative asymmetry: 9 Average internal loop relative asymmetry: 1.53 Minimum internal loop relative asymmetry: 1

Multi-loop features Number of multi-loops [?]: 9 Maximum number of free bases in multi-loops: 25 Average number of free bases in multi-loops: 4.03 Minimum number of free bases in multi-loop: 0 Maximum multi-loop absolute asymmetry: 22 Average multi-loop absolute asymmetry: 3.09 Minimum multi-loop absolute asymmetry: 0 Maximum multi-loop relative asymmetry: 8.33 Average multi-loop relative asymmetry: 1.09 Minimum multi-loop relative asymmetry: 0 Maximum number of branches in multi-loops: 4 Average number of branches in multi-loops: 3.33 Minimum number of branches in multi-loops: 3

Non-canonical base pairs features Total number of non-canonical base pairs [?]: 43 Total number of AA non-canonical base pairs: 6 Total number of AC non-canonical base pairs: 5 Total number of AG non-canonical base pairs: 20 Total number of CC non-canonical base pairs: 2 Total number of GG non-canonical base pairs: 4 Total number of UU non-canonical base pairs: 6

Pseudoknot features Number of pseudoknots [?]: 4 Number of bands: 8 Number of base pairs in bands: 64 Maximum band length: 32 Average band length: 8 Minimum band length: 2 Maximum number of bands per pseudoknot: 2 Average number of bands per pseudoknot: 2 Minimum number of bands per pseudoknot: 2 Maximum number of un-bands: 3 Average number of un-bands: 1.25 Minimum number of un-bands: 0 Maximum number of in-bands: 9 Average number of in-bands: 2.5 Minimum number of in-bands: 0 Maximum number of unpaired bases: 66 Average number of unpaired bases: 29.5 Minimum number of unpaired bases: 9 Several ways to remove minimum number of base pairs, per molecule: No Minimum number of base pairs to remove, per molecule: 11 Maximum number of base pairs to remove, per pseudoknot: 4 Average number of base pairs to remove, per pseudoknot: 2.75 Minimum number of base pairs to remove, per pseudoknot: 2 Minimum number of bands to remove, per molecule: 4 Maximum number of bands to remove, per pseudoknot: 1 Average number of bands to remove, per pseudoknot: 1 Minimum number of bands to remove, per pseudoknot: 1
